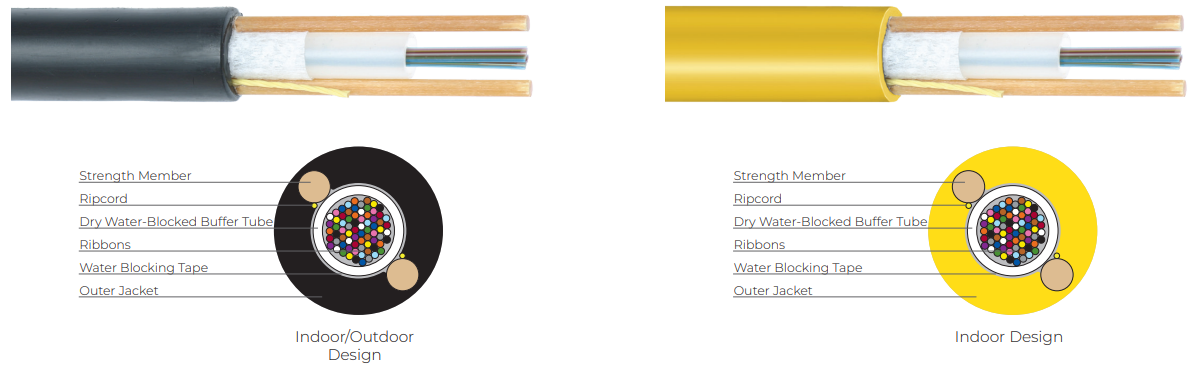

288-432f FusionLink™ RICT Indoor and Indoor/Outdoor Riser with FlexRibbon® Cable
Product description
FusionLink™ RICT with FlexRibbon® technology offers an ultra-compact design for indoor and outdoor cables, capable of housing up to 432 bend-insensitive fibers. This innovative design employs FlexRibbon technology, enabling fiber ribbons to be rolled and tightly packed into a small-diameter central tube. While FlexRibbon facilitates a high packing density, the 200 µm fiber ribbons maintain the benefits of mass fusion splicing.
Resources
- Fiber Indoor Ordering Guide
- Fiber Indoor/Outdoor Ordering Guide
- Color Code Guide for Fiber Optic Specifications
- Fiber Code Addendum
- International Standards and Fiber Products Table
Part Numbers
US
| Fiber Count | Prysmian Part Number | Number of Ribbons | Fibers per Tube | Buffer Tube OD | Cable OD | Approx. Cable Weight | Max. Reel Length | ||||
| in | mm | in | mm | lb/kft | kg/km | feet | meters | ||||
| INDOOR/OUTDOOR: FusionLink™ Indoor/Outdoor with FlexRibbon® | OFNR/FT4 | |||||||||||
| 288 | F-RRIOCFK-12-AA-288-BB | 24 | 288 | 0.35 | 8.8 | 0.62 | 15.8 | 147 | 218.6 | 40354 | 12,300 |
| 432 | F-RRIOCFK-12-AA-432-BB | 36 | 432 | 0.35 | 8.8 | 0.62 | 15.8 | 153 | 227 | 40354 | 12,300 |
| INDOOR ONLY: FusionLink™ Indoor Only with FlexRibbon® | OFNR/FT4 | |||||||||||
| 288 | F-RRCFK-12-AA-288-BB | 24 | 288 | 0.35 | 8.8 | 0.62 | 15.8 | 147 | 218.6 | 4034 | 12,300 |
| 432 | F-RRCFK-12-AA-432-BB | 36 | 432 | 0.35 | 8.8 | 0.62 | 15.8 | 153 | 227 | 40354 | 12,300 |
Global: M-RRIOCFK-12-AA-288-BB, M-RRIOCFK-12-AA-432-BB, M-RRCFK-12-AA-288-BB, M-RRCFK-12-AA-432-BB
Features and Benefits
Ultra Compact Design
- FlexRibbons are rolled up into compact central tube designs
- Significantly smaller diameter and lighter weight cables allow for easier installation and the use of smaller ducts
FlexRibbon Technology
- Extremely flexible ribbons can be rolled up for high packing densities or laid flat for ribbon splicing
- 12 fiber ribbons are compatible with mass fusion heat strippers, cleavers, and splice machines
- Uses standard 200 um coated bend-insensitive fiber (ITU G657.A1)
Performance
- Uses full dry water blocking technology in the tube and cable core for easy closure preparation and termination
- Tested in accordance with ICEA 696 and with relevant EIA/TIA-455 series FOTPs for fiber optic cables
Flame Retardant Construction: Riser designs comply with UL 1666 and are OFNR and OFNG-FT4 rated
Registered Supplier: ISO 9001, ISO 14001, TL 9000, and OHSAS 18001
