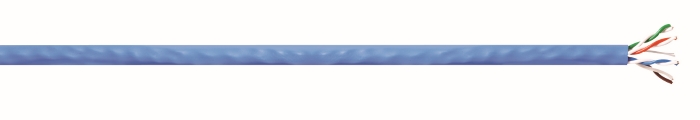

GenSPEED® 5350 with 17 FREE® Enhanced Category 5e Cable

Part Numbers

Resources

• GenSPEED® Category 5E Quick Reference Guide
• GenAssurance Product Warranty
• Datacom Cable Quick Reference Guide

Construction

Conductors: 24 AWG CMP solid bare annealed copper

Insulation: Non-Plenum: Polyolefin

Color Code

• Pair 1: Blue-White/Blue
• Pair 2: Orange-White/Orange
• Pair 3: Green-White/Green
• Pair 4: Brown-White/Brown

Jacket: Non-Plenum: Zero-Halogen Polyolefin

Features and Benefits

• No halogens Less toxic
• More environmentally friendly
• Increased flexibility for easy installation
• Engineered to provide stable and continuous performance
• Performance guaranteed to 350 MHz
• TRU-Mark® print legend contains footage markings from 1000' to 0'
• Third-party verified for guaranteed performance
• Made in U.S.A.

Applications

• IEEE 802.3: 1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+
• CDDI, Token Ring, ATM
• Broadband and Baseband Analog Video

Standard Compliances

• ANSI/TIA 568. 2-E
• NEC/CEC Type CMR (UL 1666) for Non-Plenum
• UL 444
• RoHS Compliant Directive 2011/65/EU
• ANSI/TIA 862 (Building Automation)
• ICEA S-90-667
• ISO/IEC 17807 Ed. 2.0 (Class D)
• IEC 60754-1 IEC 60754-2
• IEC 67034-2
