Deadbreak Connecting Plugs
Product description
The Deadbreak Connecting Plug provides a means for connecting two or more Deadbreak Elbows. The Deadbreak T Bodies can be configured as a splice or stacked onto a junction or apparatus bushing. The Deadbreak Connecting Plugs are available with Aluminum (600A) or Copper (900A) contacts. Each plug is manufactured from EPDM rubber, fully shielded, and has an internal 5/16” hex for installation.
Features
- 100% EPDM Composition
- Injection Molded & Peroxide Cured
- Available in Aluminum or Copper
- Fully Shielded / Dead-front
- Meets the requirements of IEEE 386
- Meets the requirements of ANSI C119.4
- Meets the requirements of IEEE 592
Product Offering

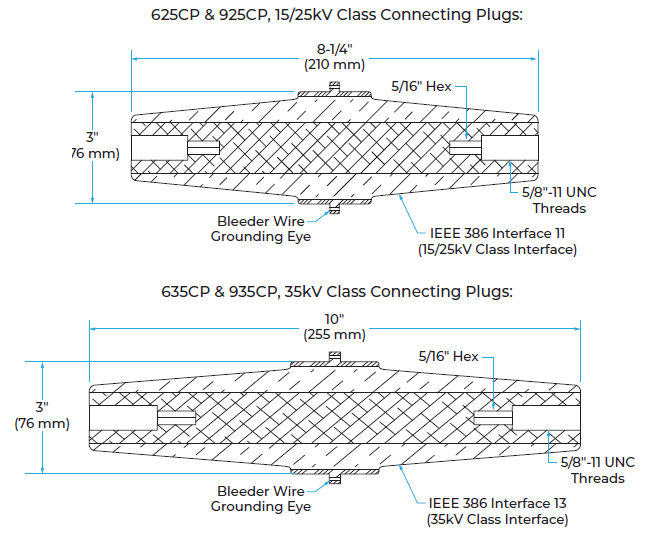

| Catalog ID | Material | Continuous Current Rating | Short Time Current Rating |
| 625CP | Aluminum | 600A | 25kA, 10 cycles and 10kA, 3 sec. |
| 925CP | Copper | 900A | 40kA, 10 cycles and 10kA, 3 sec. |
| Voltage Rating | |||
| Maximum Voltage Rating – Phase to Ground | 16.2kV | ||
| Corona Voltage Level – Partial Discharge Extinction Voltage | 30kV | ||
| AC Withstand – 1 minute | 57kV | ||
| Impulse Withstand Voltage – BIL | 125kV | ||
| Catalog ID | Material | Continuous Current Rating | Short Time Current Rating |
| 635CP | Aluminum | 600A | 25kA, 10 cycles and 10kA, 3 sec. |
| 935CP | Copper | 900A | 40kA, 10 cycles and 10kA, 3 sec. |
| Voltage Rating | |||
| Maximum Voltage Rating – Phase to Ground | 21.1kV | ||
| Corona Voltage Level – Partial Discharge Extinction Voltage | 35kV | ||
| AC Withstand – 1 minute | 81kV | ||
| Impulse Withstand Voltage – BIL | 200kV | ||
