Deadbreak Jacket Seal and Grounding Kits

Deadbreak Jacket Seal and Grounding Kit
Product description

Prysmian Jacket Seal kits are cold-shrink tubes expanded onto a spiral carrier tube for the re-jacketing of medium-voltage and other power cables. These kits should be used when the jacket of a power cable is removed, and a moisture seal must be reconstructed. These kits are designed for use on LC and Tape Shielded cables. All components needed to connect to the shield are included, and installation is quick and easy by unwinding the cord and shrinking the jacket seal over the desired area.



Features

  • Range Taking
  • Submersible solution for re-jacketing medium voltage power cables

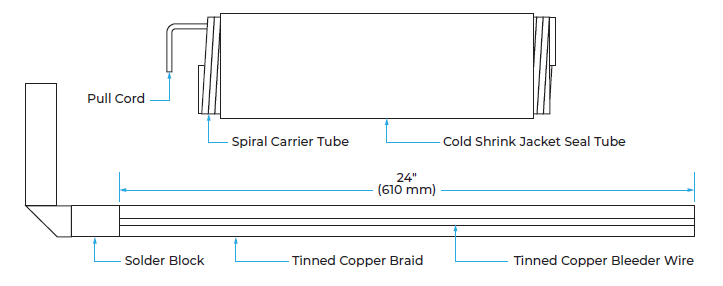

Included in the Kit

  • Cold Shrink Jacket Seal
  • Sealing Mastic
  • Constant Force Spring
  • Tinned Copper Braid with Bleeder Wire



Product Offering

Catalog IDMin. Seal DiameterMax. Seal DiameterNom. Relaxed Tube LengthTypical Prysmian
Cable Adapter Range
GS40020.651.697.87Cable Adapters E - H
GS41021.342.997.87Cable Adapters J - K
GS41031.342.997.87Cable Adapters L - M
GS41041.342.997.87Cable Adapters N - Q
GS41051.342.997.87Cable Adapters R
Product datasheet
