Polyrad® XT Transit Databus Cables - SPEC 750

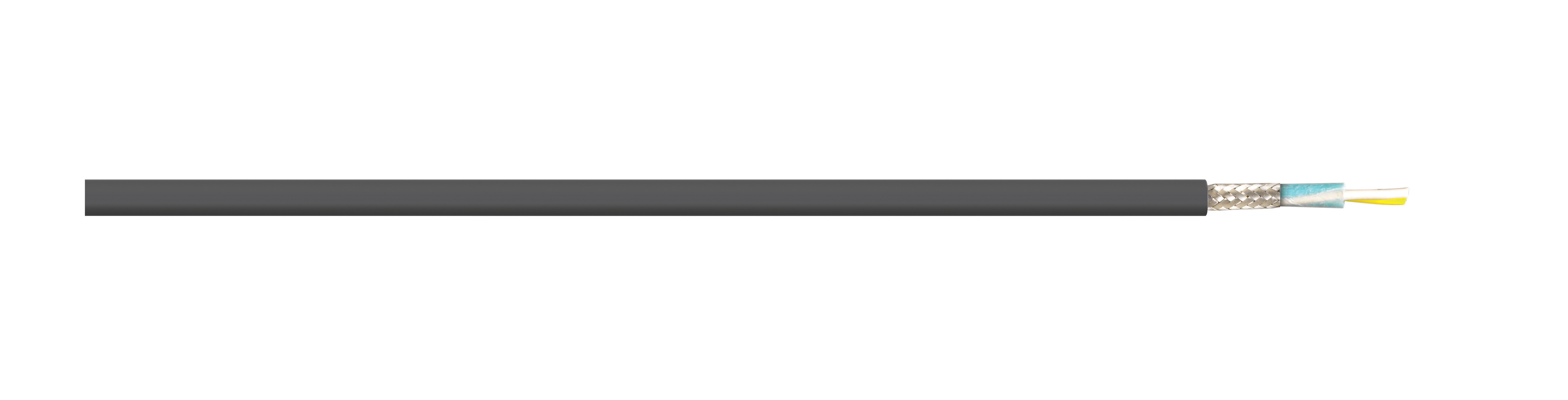

Polyrad® XT Transit Databus Cable
Product description

Prysmian offers a wide variety of transit data communications cables that meet UL 1581 VW-1 flammability requirements, ASTM E662 smoke density, and Boeing BSS 7239 and Bombardier SMP 800-C toxicity standards. Transit data communications cables are produced in multi-conductor, coaxial, and shielded twisted-pair configurations. Our high-quality products are engineered for outstanding thermal stability at elevated temperatures and excellent performance in sub-zero conditions. An extra-tough, irradiated thermoset jacket provides resistance to most oils, chemicals, and moisture while still allowing flexibility and free stripping. Prysmian can also design products tailored to individual customer needs and requirements.



Product Construction

Conductor: 20 AWG thru 12 AWG soft annealed tinned copper per ASTM B33, B8 and B172

Insulation: Low-smoke irradiated Cross-linked Polyolefin (XLPO)

Jacket: Polyrad® XT flame-retardant, low-smoke irradiated Cross-linked Polyolefin (XLPO)

Print (Including but not limited to): PRYSMIAN (WC) POLYRAD® XT XX/COND XXAWG SHIELDED XXX OHM 110˚C 600 V DAY/MONTH/YEAR

Options: Other data communications cables available upon request



Applications

  • Ideally suited for use where specific and stable electrical values are required
  • Engineered and manufactured for both original equipment and retrofit use in electronic equipment



Features

  • Excellent flexibility and free stripping
  • Outstanding thermal stability at elevated temperatures
  • Excellent low-temperature performance; suitable for installation in sub-zero conditions
  • Extra-tough, mechanically rugged irradiated thermoset jacket
  • Resistant to most oils and chemicals



Compliances

Flame Test: VW-1

Other: NFPA-130 (2017) On-Vehicle, BSS 7239, SMP 800-C, ASTM E662, RoHS and REACH Compliant



Packaging

  • Standard reel put-up
